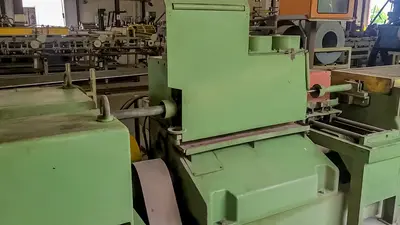

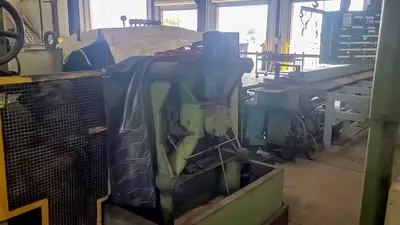

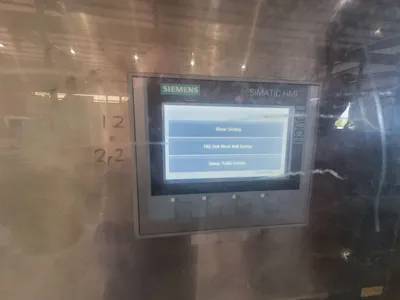

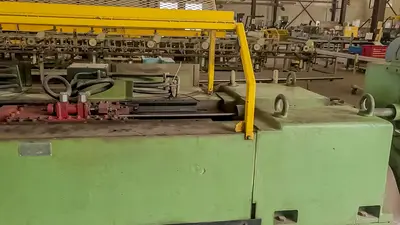

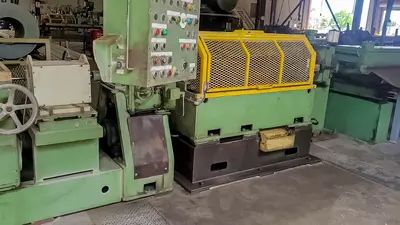

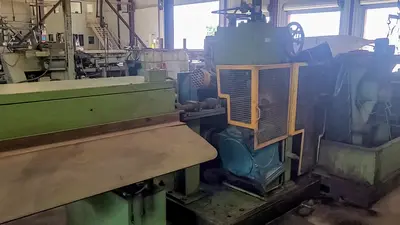

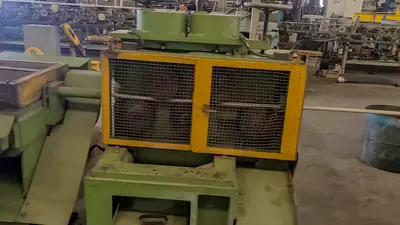

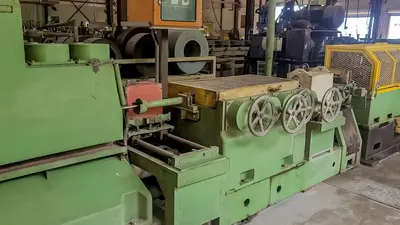

1" SCHUMAG Combined Drawing Machine - Bar‑Processing Line

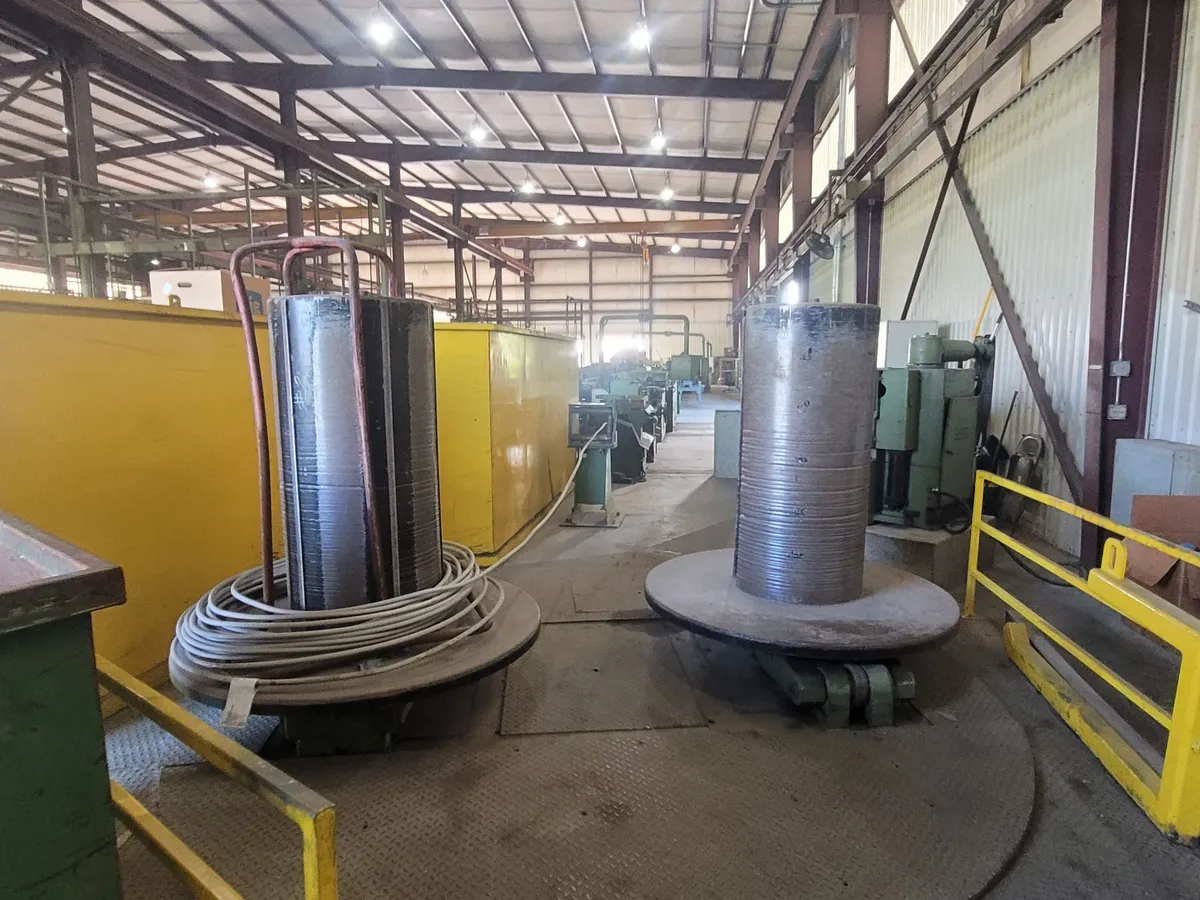

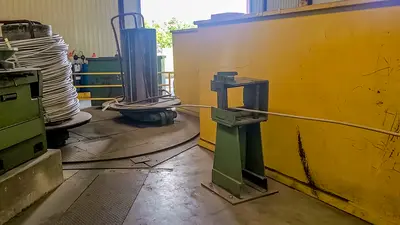

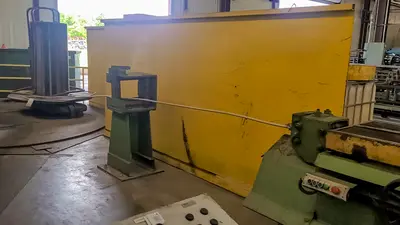

1. Roller Cross

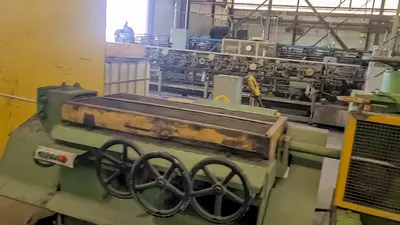

2. Horizontal Pre‑Straightener
3. Vertical Pre‑Straightener

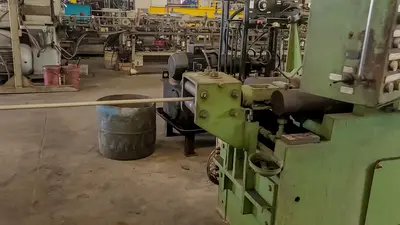

4. Hydraulic Push–Pointer

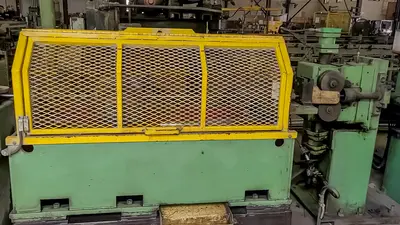

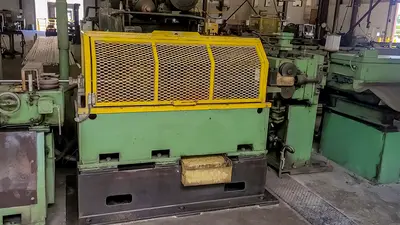

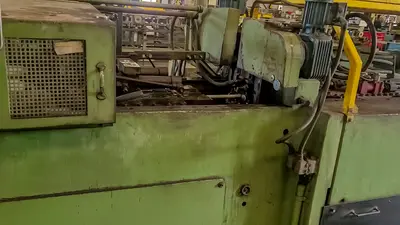

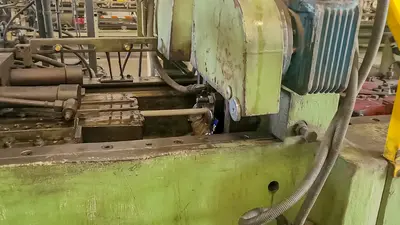

5. Drawing Unit
6. Eddy Current Testing Device

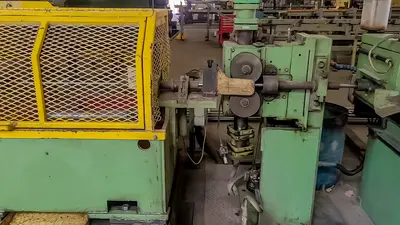

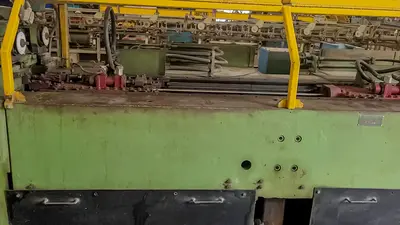

7. Horizontal Roll Straightener
8. Demagnetizer

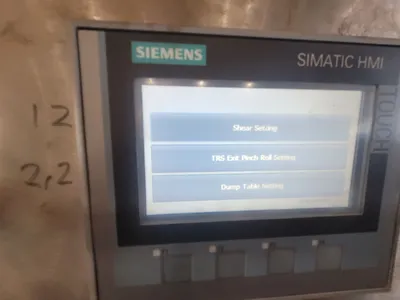

9. Hydraulic Impact Shear
10. Soundproof Tube Guide

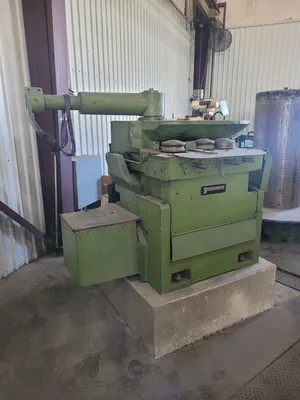

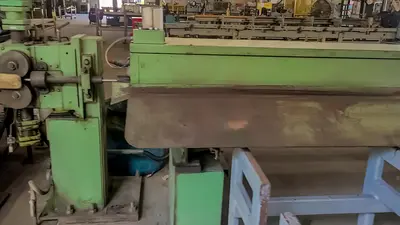

11. Polishing / Finishing Straightener

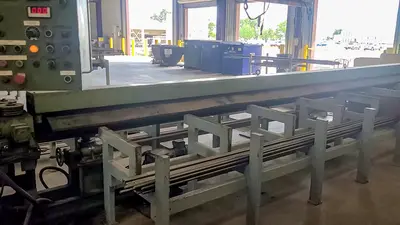

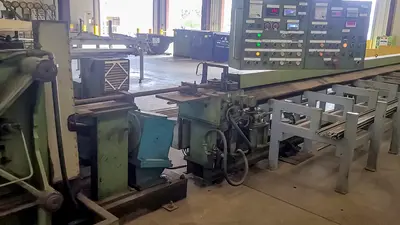

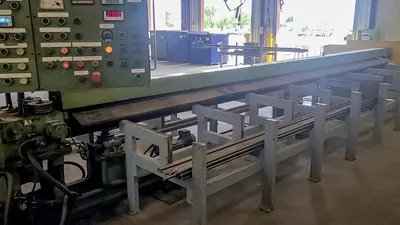

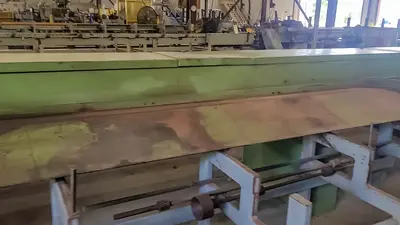

12. Discharge Table / Bundle Station
----------------------------------------------------------------
CATALOG SPECS:
MACHINE DESIGNATION KZRB2 B

DRAWING UNIT
Drawing Pull (max).............. 100 kN (~0.1 t)
Drawing Speed (max)............. 80 m/min

OPERATING RANGE
Max Dimension – Solids (round).. 30 mm
Max Dimension – Solids (hex).... 27 mm A/F
Max Dimension – Solids (square). 25 mm A/F
Max Dimension – Tubes (OD)...... 35 mm
Flats............................ (not specified)
Minimum Diameter / A/F.......... 10 mm

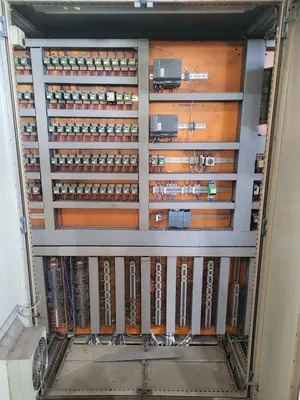

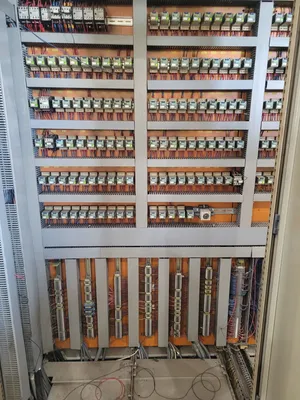

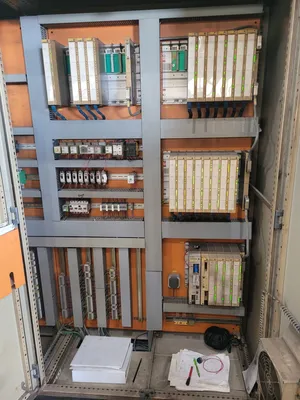

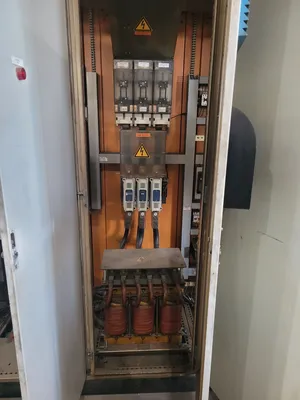

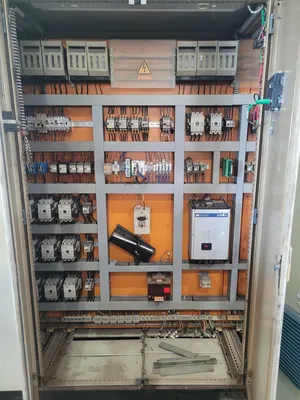

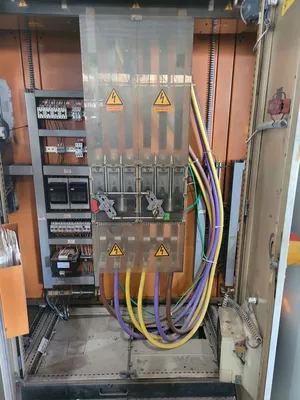

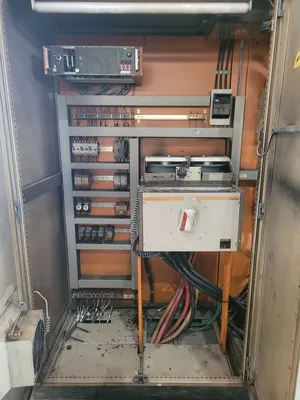

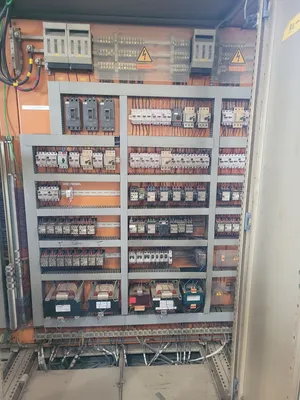

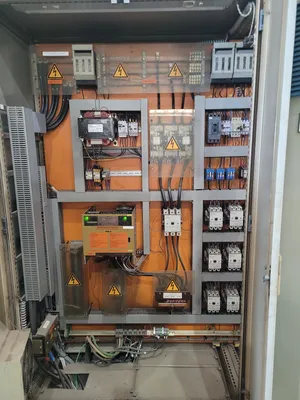

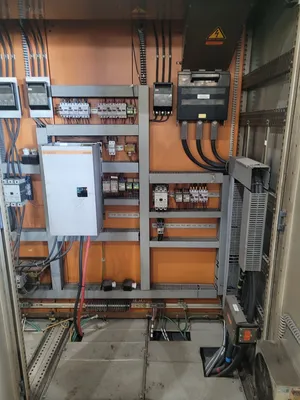

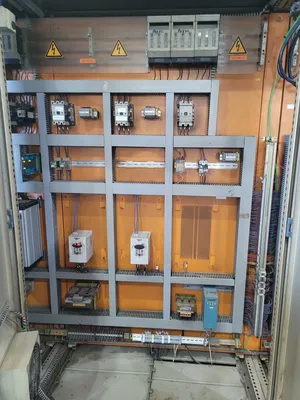

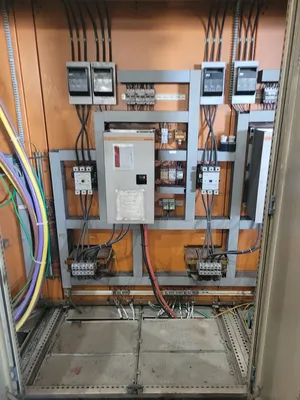

POWER REQUIREMENTS
Draw Unit + Roller Straighteners + Shear... 200 kW
Straightening & Polishing Machine.......... 55 kW

PUSH–POINTER (ENTRY MACHINE)
Push–Pointing Force............. 250 kN
Push–Pointing Stroke (max)...... 300 mm
Power........................... 30 kW

BAR LENGTH CAPABILITY
Shortest Bar (Flying Shear)..... 3.0 m
Shortest Bar (Flying Saw)....... 4.0 m
