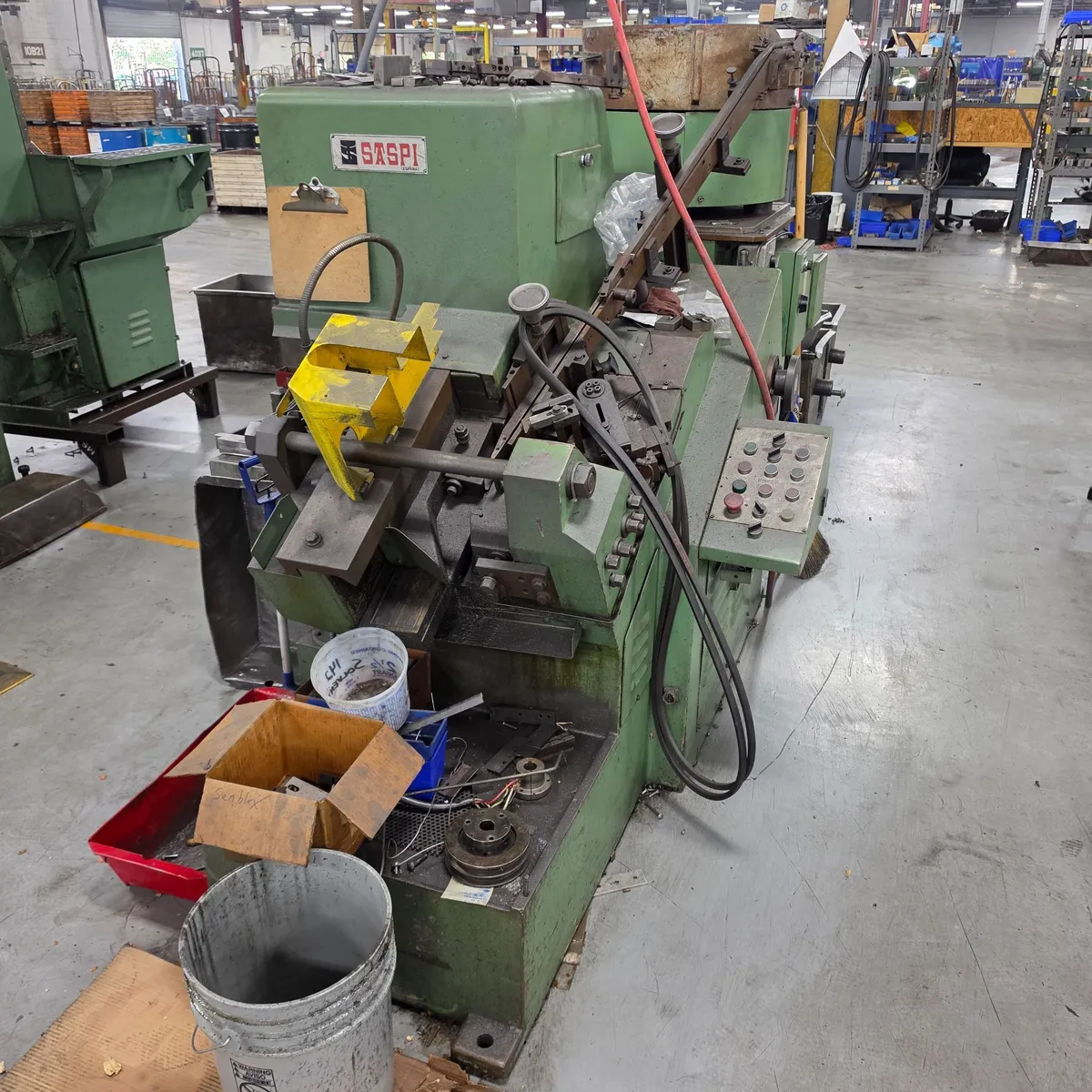

5/16" SASPI GV-2-10

SASPI — TECHNICAL CHARACTERISTICS
────────────────────────────────────────────────────────────

STANDARD SCREWS
• Thread Diameter: 2 – 8 mm
• Maximum Thread Length: 52 mm
• Maximum Product Length: 100 mm

SELF-TAPPING & WOOD SCREWS
• Minimum Diameter (Self-Tapping): 1.8 mm
• Maximum Diameter (Self-Tapping): 6.3 mm
• Maximum Diameter (Wood Screws): 6 mm
• Maximum Thread Length: 50 mm

DIE DIMENSIONS
• Moving Die: 171.4 × 30.2 × 79.4 mm
• Fixed Die: 152.4 × 30.2 × 79.4 mm

MACHINE SPEED & POWER
• Speed: 60 – 300 p.m.
• Main Motor: 15 HP
• Coolant Motor: 0.75 HP
• Lubrication Motor: 0.12 HP
• Chip Separator Motor: 0.25 HP

FLUID & CAPACITY
• Coolant Tank Capacity: 80 L

PHYSICAL DIMENSIONS
• Length × Width × Height: 2375 × 1730 × 1920 mm
• Net Weight: 4200 kg

────────────────────────────────────────────────────────────
