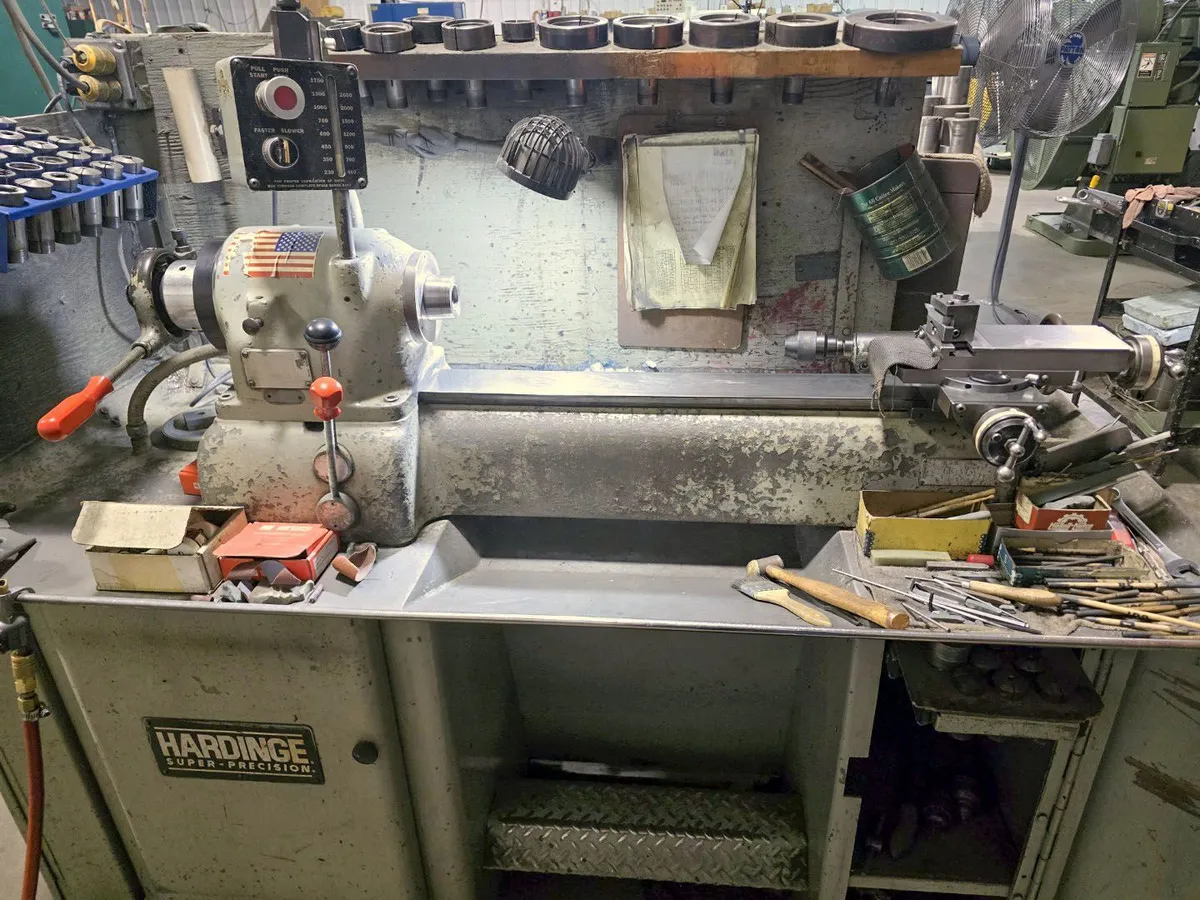

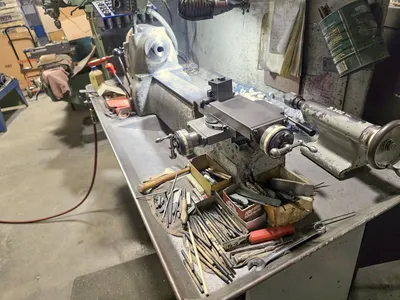

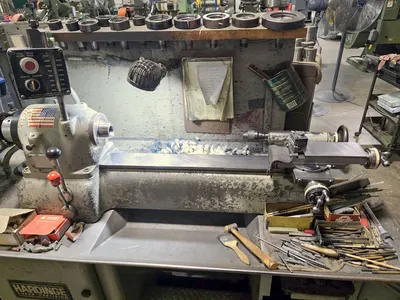

Used HARDINGE DV-59 | Precision Lathes

MODEL TYPE:
DV-59 (Plain-Turning / Second-Operation Lathe)

CAPACITIES:
Swing Over Bed..................... 9"
Distance Between Centers........... 17" (toolroom configuration)
Bed Length......................... 28–36" (varies by cabinet/base)

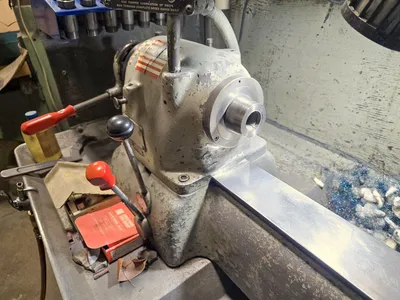

SPINDLE:
Type............................... Hardinge preloaded ball-bearing
Taper.............................. Hardinge proprietary taper
Through Capacity................... 1-5/32" (with 5" jaw chuck)

SPINDLE SPEED:
Variable Range..................... 230–3500 RPM (typical DV-59)
Mechanical Step Range.............. 230–3900 RPM (some variants)

COLLET / CHUCKING CAPACITY:
5C Round........................... 1-1/16"
5C Hex............................. 7/8"
5C Square.......................... 3/4"
Step Chucks........................ 1-1/16" to 6"
Jaw Chuck.......................... 5"

SLIDES & TRAVEL:
Cross Slide Travel................. 3-3/4"
Top Slide Travel................... 5"
Bottom Slide Travel................ 4-1/2"
Turret Slide Travel................ 4"
Turret Hole Diameters.............. (5) 5/8", (1) 1"

MOTORS:
Main Spindle Motor................. 1 HP, 3-phase (common)
Optional Motor...................... 3/4 HP, 2-speed (440V)
Coolant Pump Motor................. 1/10 HP

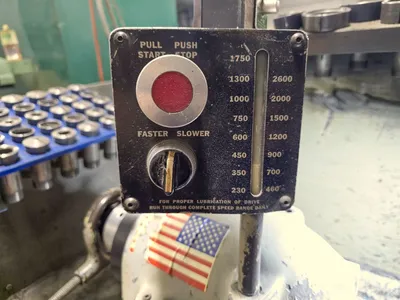

CONTROLS:
Push-Button Start/Stop
Variable-Speed Dial (FASTER/SLOWER)
Daily Full-Range Lubrication Requirement

DIMENSIONS / WEIGHT:
Toolroom Cabinet................... 50" L × 30" W × 48" H
Production Cabinet................. 60" L × 30" W × 60" H
Approx. Weight..................... 1,000–1,500 lbs

STANDARD / COMMON EQUIPMENT:
Lever 5C Collet Closer
Double-Tool Cross Slide (second-op)

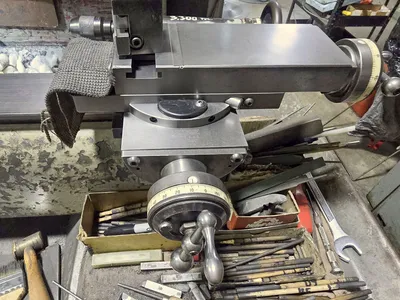

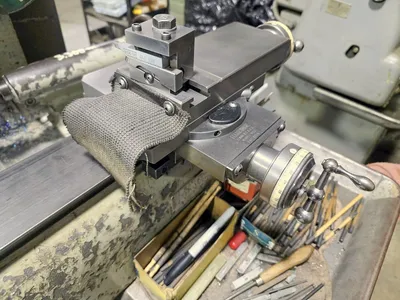

Compound Slide Rest (toolroom)
Tailstock (optional)
Coolant System (optional)
Hardinge Cabinet Base
