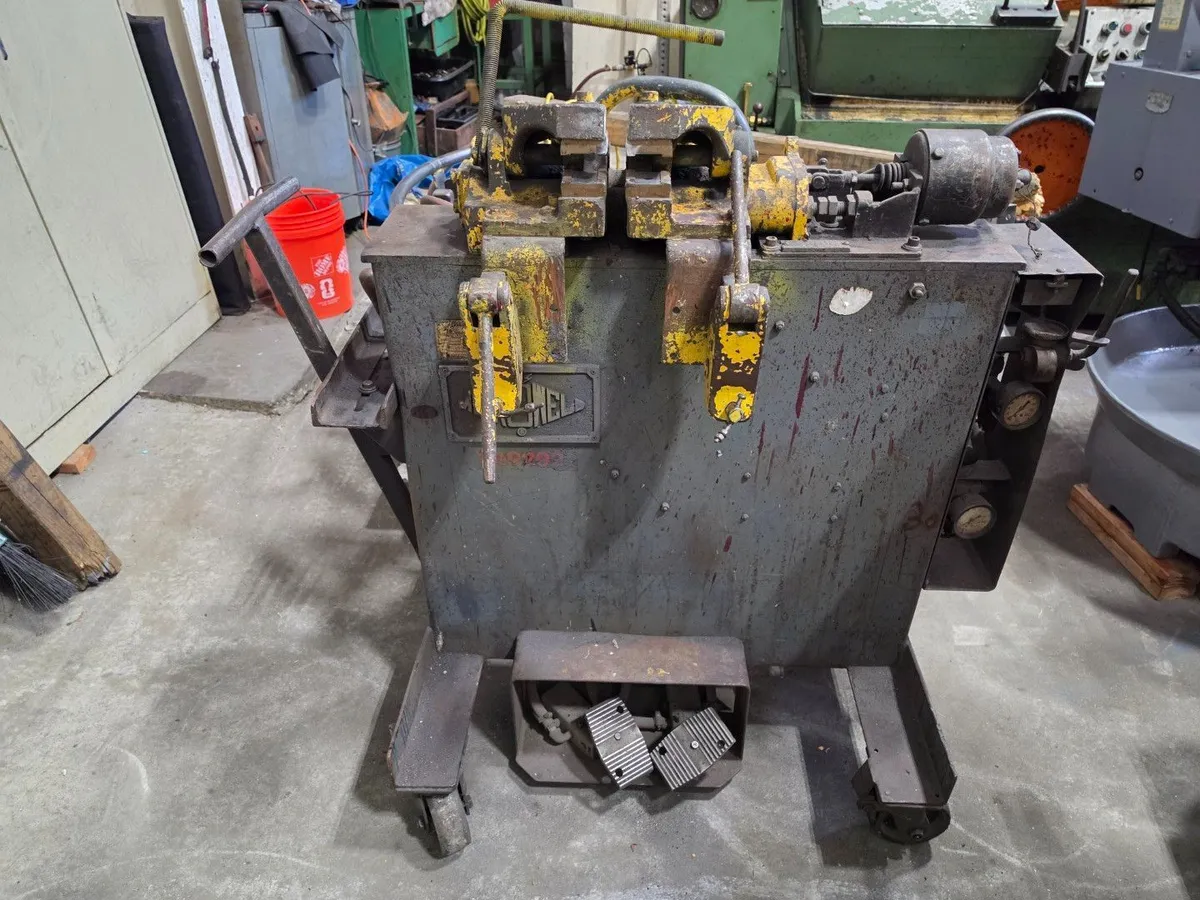

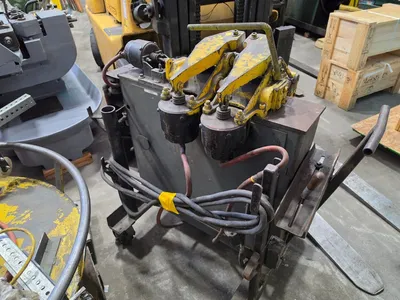

3/8" MICRO PRODUCTS Microweld HX

CAPACITY:
- Min diameter: 0.128"
- Max diameter: 0.375"
- Material: Steel, stainless, similar weldable alloys

ELECTRICAL:
- Voltage: 440 V
- Current: 30 A
- Frequency: 60 Hz
- Phase: Single-phase (typical for these units)
- Approx. KVA: ~13 kVA (440 V × 30 A ÷ 1000)

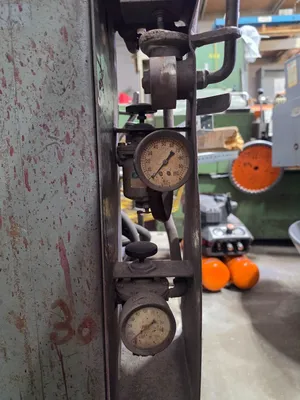

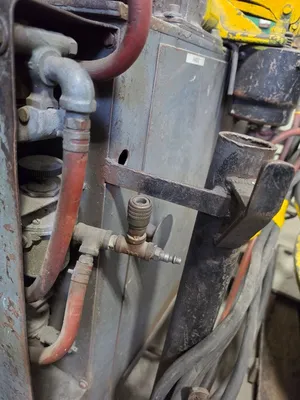

PNEUMATICS / ACTUATION:
- Clamp: Pneumatic
- Upset: Pneumatic

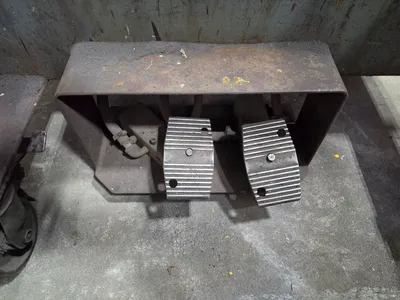

- Control: Foot pedals
- Typical air: ~80–100 psi shop air

MECHANICAL:
- Type: Resistance butt welder

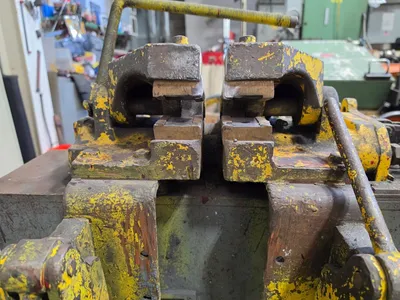

- Platens: Straight-slide movable welding platens
- Frame: Floor-mounted, heavy welded frame
- Operation: Foot-actuated clamp/upset with manual anneal

INTENDED USE:
- Continuous butt welding of wire/rod up to 3/8"
- Common in spring wire, small rod, and general fabrication lines
