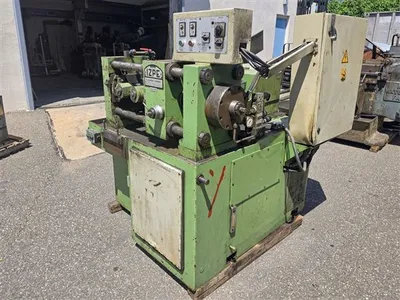

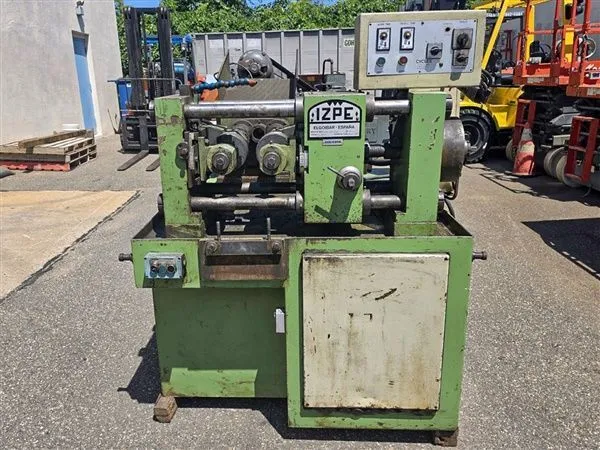

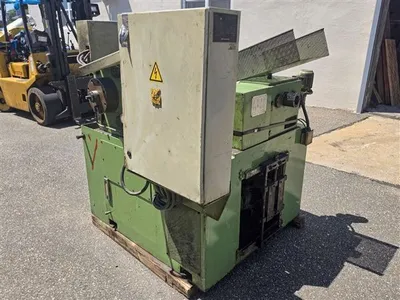

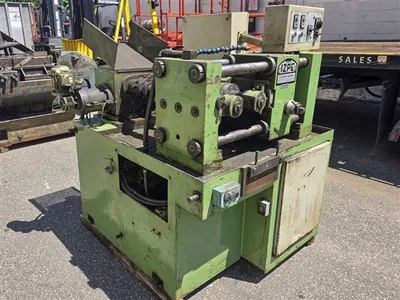

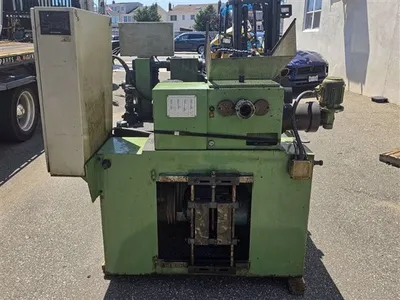

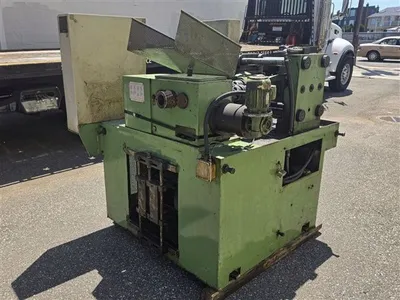

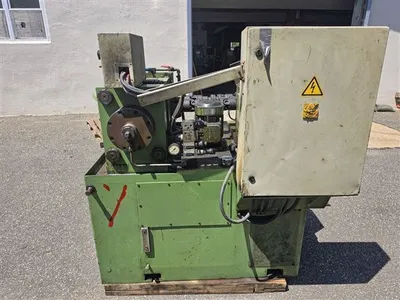

2-1/4" Izpe RSC-20/160 2 Die Cylindrical Thread Roller In-Feed Thru-Feed
Have one to sell?
ConditionUsed
1 available
Used 2-1/4" Izpe RSC-20/160 cylindrical thread roller with in-feed and thru-feed capabilities. Handles 3mm to 60mm thread diameter, provides plunge threading up to 160mm, ACME thread pitch max 2.5mm. Features 30mm-170mm roll diameter. Ideal for precision threading tasks.
Thread Diameter Range: 3 mm to 60 mm (0.12" to 2.36")
Plunge Threading Length: 160 mm (6.30")
Thread Pitch Range: 0.5 mm to 5.0 mm (0.020" to 0.197")
Maximum ACME Thread Pitch: 2.5 mm (0.098")
Roll Diameter Range: 30 mm to 170 mm (1.18" to 6.69")
Roll Width: 60 mm (2.36")
Production at 89 RPM: 20,000 Kgs (≈ 44,092 lbs of rolling force)
Maximum Working Pressure: 150 Kgs/cm² (≈ 2,135 psi)
Hydraulic Pump Motor: 3 HP
Cooling Pump Motor: 0.5 HP
