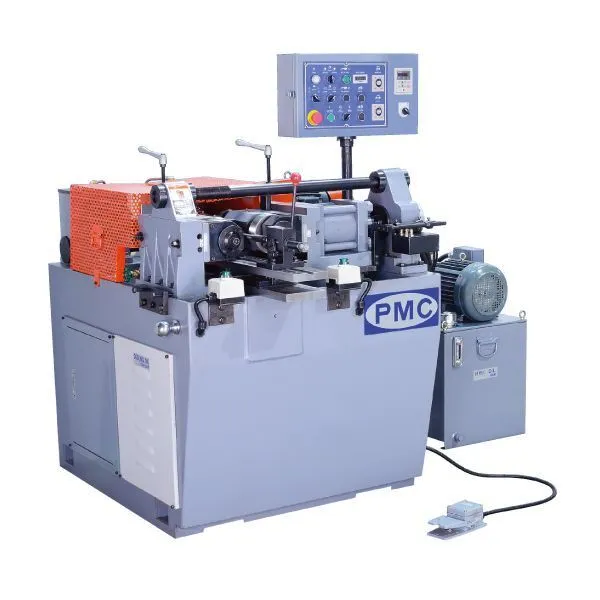

PMC PM-40 2-Roll Type Thread Rolling Machine

- Maximum Rolling Pressure: 27 ton
- Solid Bar Outside Diameter (threaded): 3–40 mm
- Thread Pitch Range: 0.5–4.5 P; 40–5 TPI
- Other Thread Types Suited: Diamond knurling; straight knurling; small spline; small ball screw (others subject to approval)
- Max. Plunge-Feed (In-Feed) Thread Length: Equal to max die width
- Max. Thru-Feed Thread Length: Infinite (free extension thread length)
- Die-Spindle Diameter (2 pcs roller spindle): 54 mm (2-1/8")
- Rolling Dies Max. Outside Diameter: 150 mm
- Rolling Dies Bore Diameter: 54 mm (2-1/8")
- Rolling Dies Max. Width: 70 mm (Standard); 100 mm (Option – enlarged mechanism)
- Spindle Speed Range: 20–60 RPM
- Max. Inclination of Both Spindles: 0°–10° (for thru-feed production)
- Distance Between Die-Spindle Centers: 125–190 mm
- Height from Table Surface to Spindle Center: 160 mm
- Die-Spindle Main Drive: 7.5 HP
- Hydraulic Motor: 5 HP
- Coolant System: 1/8 HP
- Machine Net Weight (approx.): 2,100 kg
- Machine Gross Weight (approx.): 2,300 kg
- Machine Dimensions (L × W × H): 190 × 156 × 185 cm
- Shipping Dimensions (L × W × H): 210 × 176 × 205 cm

Additional Notes:
- Model PM-40-AUTO BALL PIN is a fully automatic machine for ball pin threading, equipped with loader and unloader.
- All models are available with automation linkage (magazine loader, auto feed, and unloader).
- Design and technical data are subject to change without notice.
