BONOTTO PACKAGING BP-305 Weigh/Count Scale
Have one to sell?
ConditionNew
New

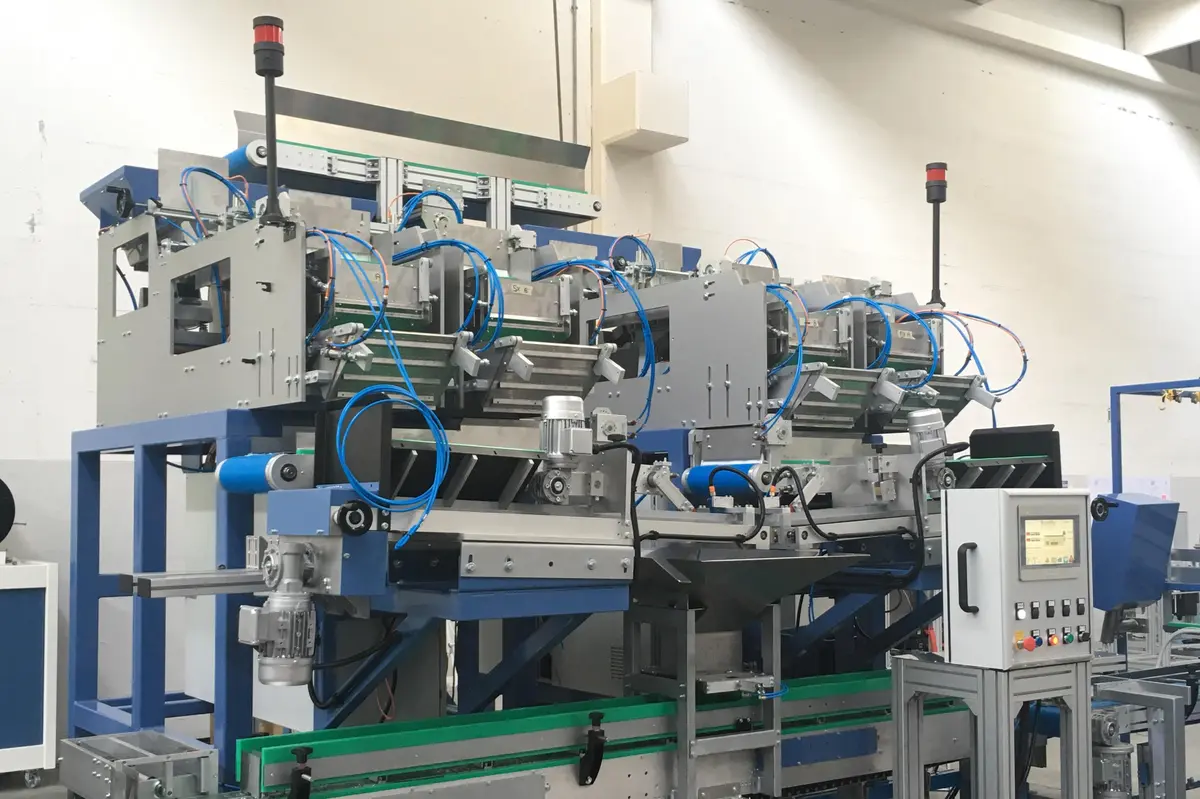

The PLC controlled BP-305can weigh and count medium size hardware such as screws and bolts. The parts are dosed from bulk and can then be dropped into a bagger or a box, depending on the application.
- Twin machine.
- Anodized aluminium side frame.
- N.2 60-litre hopper capacity.
- Pre-feed vibrating chute controlled by a mobile scale or photocell.
- N.2 Bulk-feed vibrating chute with pneumatic controlled closing flap.
- N.2 Weighing baskets with double gates to dump the products into the feeding conveyor or into the roller fine feed unit.
- N.1 Unit counting system with roller feeder controlled by DC motor.
- Weighing head with mechanically protected loading cell to offset any accidental overloads.
- Possibility to store different programs to suit various products.
- Machine built according to CE standards.
- WEIGHT RANGE: From 1000 g to 18000 g
- PRODUCT RANGE: Screws min diam. M6 min length 15 mm
- Bolts max diam. M22 / max length 150 mm
- SPEED: Up to 10-15 dumps per min.
- WEIGHT BASKET SENSITIVITY: 5-10 G
